ProRox® WM 970XC
ProRox WM 970 XC is a lightly bonded heavy-duty stone wool insulation mat stitched on galvanized wired mesh with galvanized wire. Stainless steel mesh and binding wire (SW) are available upon request preserving its excellent thermal performance in use.
1/1
Application
- Industrial Insulation
Product Description
ProRox WM 970 XC is a lightly bonded heavy-duty stone wool insulation mat stitched on galvanized wired mesh with galvanized wire. Stainless steel mesh, stainless steel binding wire are available upon request. The wired mat is especially suitable for the thermal insulation of industrial applications when high-temperature resistance is demanded, such as high-pressure steam pipes, reactors and furnaces.
- Lightweight to support lower fuel costs
- Resists water absorption to deliver long-term durability
- Non-combustible and fire resistant
- Excellent acoustic performance for noise control
Product Benefits
- Suitable for heavy duty applications which are exposed to high temperatures and high mechanical loads
- Resistant to high temperatures
- Flexible application
- Available in a wide range of thicknesses
- Suitable for use over stainless steel
Application
The wired mat is suitable for the thermal and acoustic insulation of industrial installations subjected to vibrations and exposed to the environment, such as outdoor industrial pipework, reactors and furnaces.
Thermal Conductivity
| Name | Unit | Symbol | Value |
|---|---|---|---|
| Thermal conductivity (50 °C) | W/m∙K | λ (50°C) | 0.04 |
| Thermal conductivity (100 °C) | W/m∙K | λ (100°C) | 0.04 |
| Thermal conductivity (150 °C) | W/m∙K | λ (150°C) | 0.05 |
| Thermal conductivity (200 °C) | W/m∙K | λ (200°C) | 0.06 |
| Thermal conductivity (250 °C) | W/m∙K | λ (250°C) | 0.07 |
| Thermal conductivity (300 °C) | W/m∙K | λ (300°C) | 0.08 |
Technical Properties
| Name | Unit | Value |
|---|---|---|
| Surface burning characteristics | Flame spread index ≤ 25; Smoke development index ≤ 50 | |
| Water absorption | kg/m² | ≤ 1,0 kg/m² |
| Maximum service temperature | °C | 680 |
Product Variant

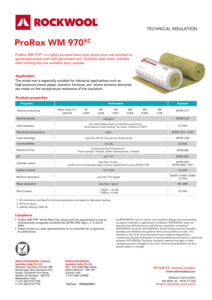

Downloads
