Toprock® DD
ROCKWOOL Toprock® DD is a high-density uncoated insulation board for low-slope roof applications. It is compatible as the substrate for mechanically-attached membrane systems.
1/2
Popular applications
- Roof insulation
- Low slope roof insulation
- Metal roof insulation
About this product
ROCKWOOL Toprock® DD is a high-density, uncoated stone wool insulation board for low-slope roof applications. Toprock DD is compatible as the substrate for mechanically-attached (or fastened) roofing systems.
Toprock DD is noncombustible, will not develop toxic smoke or promote flame spread even when directly exposed to fire. Also offering improved sound absorbency and dimensional stability, Toprock DD is designed to maintain performance for the long-term as part of your building envelope.
- Noncombustible and fire resistant
- NCC (Non Combustible Core) Rated Roof Insulation
- Mechanically fastened roof solutions
- Water and moisture repellent
- Dimensional stability to maintain performance
- Excellent acoustic performance
Why use stone wool insulation
- Stable long-term R-values for superior thermal performance.
- Made from naturally fire resilient stone, ROCKWOOL insulation will not develop toxic smoke or promote flame spread, even when exposed to a fire.
- Stone wool provides excellent noise reduction and sound absorption to help you create quieter, more productive environments.
- Water resistant, stone wool does not rot or promote the growth of mildew, fungi or mold
- The manufactured dual-density boards provide increased compressive strength and point load resistance to minimize puncture damage from foot traffic and severe weather.
- Dimensionally stable, stone wool does not expand or contract due to temperature variances.
Applications
- Versatile insulation for low-slope roof applications.
- Compatible with mechanically-attached membrane systems.
- TPO, PVC, EPDM or KEE membrane types.
- A component of fire-rated low slope roof assemblies.
- Used in applications with very severe hail (VSH) conditions.
Product certificates
FM Approved
ULC Listed
Miami-Dade County Approved
UL Classified - CA/USA
Toprock® DD sizes, dimensions & packaging
Find Toprock® DD thickness, width, length and pack quantities—everything you need for accurate specification and ordering.
- All
- 7.6
- 9.5
- 11.4
- 13.3
- 15.2
- 17.1
- 19
- 20.9
- 22.8
- All
- 2
- 2.5
- 3
- 3.5
- 4
- 4.5
- 5
- 5.5
- 6
Specifications & testing
Explore Toprock® DD specifications and test results, based on relevant industry standards.
| Name | Value | Unit | Test standard |
|---|---|---|---|
| NCC (Non Combustible Core) Rated Roof Insulation | Passed | FM 4470 | |
| Flame spread index | 0 | ASTM E84 | |
| Smoke Developed Index | 0 | ASTM E84 | |
| Combustibility of Materials at 750 °C | Non-combustible | ASTM E136 | |
| Determination of Non Combustibility of Building Materials | Non-combustible | CAN/ULC S114 | |
| Fire Tests of Roof Coverings | Class A | CAN/ULC S107-03 | |
| Heat Release Rate of Roofing Assemblies with Combustible Components | Class 1 | NFPA 276 | |
| Corrosion of Steel | Passed | ASTM C665 | |
| R-Value / inch @ 75 °F | 3.8 | hr.ft².F/Btu | ASTM C518 (C177) |
| RSI value / 25.4 mm @ 24 °C | 0.67 | m²K/W | ASTM C518 (C177) |
Toprock® Plus technical documents & resources
Download Toprock® DD technical documents and resources, including the product data sheet, to support accurate specification and efficient project planning.

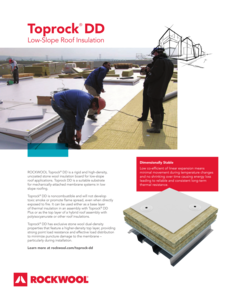

Toprock DD flat roof insulation - Data sheet
Toprock tapered, flute filler and cant strip components
Construction Details - Industrial Commercial Masonry Construction with Exterior Insulation up to 4 stories
Construction Details - Existing Multi Wythe Masonry Retrofit with Interior Insulation
Construction Details - Commercial Steel Frame Construction Heavyweight Cladding
Toprock DD_072200 Roof and Deck Insulation GUIDESPEC EN_CA
Toprock DD_072200 Roof and Deck Insulation GUIDESPEC EN_US
Enhancing metal roofing systems with stone wool insulation
Guidelines for cutting stone wool insulation
