Rocklap H&V Pipe Sections
RockLap H&V Pipe Sections provide thermal and acoustic insulation for heating, ventilation, and air conditioning pipework operating between 0°C to 250°C.
1/1
Application(s)
- HVAC
- Fire Protection
- Pipework
- Penetration Seals
- Building Services Protection
Product description
RockLap H&V Pipe Sections are pre-formed sections of stone wool insulation faced with vapour-resistant aluminium foil.
The sections are manufactured pre-slit with a self-adhered foil lap and can be cut to the required shape with a sharp knife.
*subject to application
- Euroclass A2-s1,d0 in accordance with BS EN 13501-1 Reaction to Fire rating
- Tested in accordance with EN 1366-3
- Up to 120 minutes of fire resistance*
- CE marked in accordance with EN 14303:2009+A1:2013
Areas of application
RockLap H&V Pipe Sections are suitable for use on the following construction types:
- Heating, ventilation and air-conditioning pipework (0°C to 250°C)
Documentation

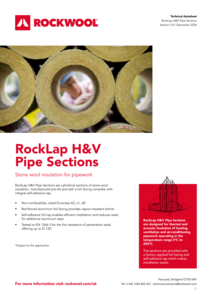

RockLap H&V Pipe Sections Datasheet
RockLap H&V Pipe Sections provide thermal and acoustic insulation for heating, ventilation, and air conditioning pipework operating between 0°C to 250°C.

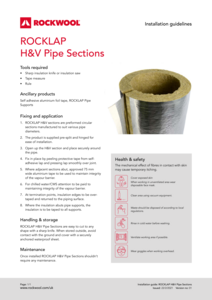

RockLap HV Pipe Sections - Installation Guide
Installation guidelines for RockLap HV Pipe Sections.
SUIS ROCKWOOL UK
Safe use instruction sheet ROCKWOOL stone wool insulation products
Republic of Ireland Price List
Price List March 2025
UK Price List
Price List March 2025
Product properties
| Name | Value | Test standard | Symbol | Unit |
|---|---|---|---|---|
| Declared thermal conductivity | 0.034 | EN 826 | λD | W/mK |
| Reaction to Fire | A2-s1,d0 | EN 13501-1 | Euroclass | |
| Long term water absorption | EN 12087 | WL(P) | kg/m² | |
| Short term water absorption | EN 1609 | WS | kg/m² | |
| Product standard | EN 14303:2009+A1:2013 | |||
| Facing type, side 1 | Alu Foil | |||
| Declaration of Performance (DoP) number | UK-WER-0107-03 |
